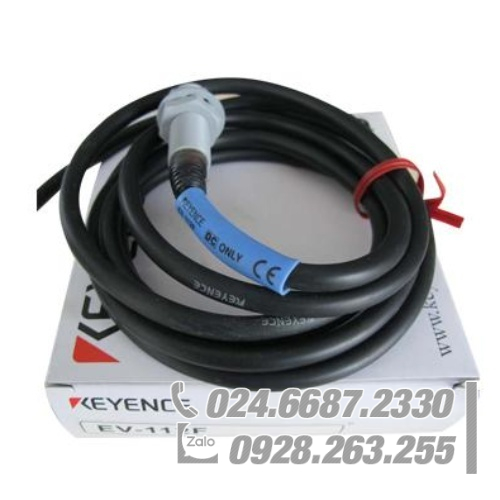

EV-F series EV-112F
| Model | EV-112F | |||
| Type | Spatter-resistant/Shielded | |||
| Shape | M12 | |||
| Detecting distance | 2.5 mm0.098″±10% | |||
| Detectable object | Ferrous metals (see Characteristics for nonferrous metals) | |||
| Standard target (iron, t=1 mm 0.04″) |
12 x 12 mm 0.47″ x 0.47″ | |||
| Hysteresis | 15% max. of detecting distance | |||
| Response frequency | 600 Hz | |||
| Operation mode | N.O. | |||
| Temperature characteristics | ±10% max. of detecting distance at 23°C 73.4°F, within -25 to +70°C -13 to +158°F |
|||
| Control output (switching capacity) |
5 to 200 mA | |||
| Protection circuit | Reversed polarity, short-circuit, surge voltage | |||
| Cable length | 2 m 6.6′ | |||
| Rating | Power voltage | 12 to 24 VDC, Ripple (p-p) 20% max. | ||
| Residual voltage | Residual voltage: 3.6 V max. (with 2-m 6.6′ cable) | |||
| Environmental resistance | Enclosure rating | IP67 | ||
| Operating temperature range | -25 to +80°C -13 to 176°F, No freezing | |||
| Operating ambient humidity | 35 to 95%, No condensation | |||
| Shock resistance | 500 m/s2 in X, Y, and Z directions, 3 times respectively | |||
| Case material | Fluoro-chemical-coated brass | |||
| Accessories | Screw nut x 2, toothed washer x 1 |
|||
| Weight | approx 110 g | |||
