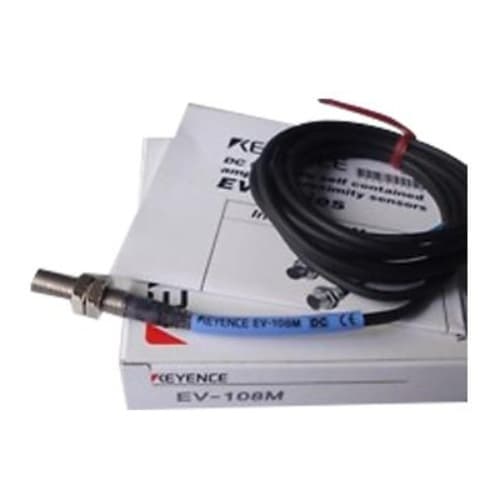

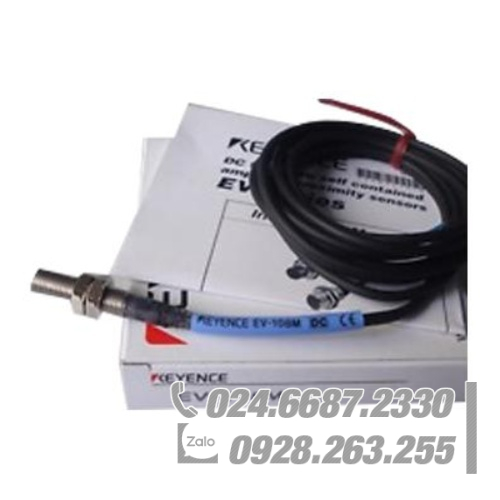

EV series EV-108M
Model: EV-108M
Detection distance: 1.5 mm 0.06 “± 10%
Detectable object: ferrous metal (see non-ferrous metal characteristics)
Standard target: (iron, t = 1mm × 0.04 “)
Response frequency: 800 Hz
Temperature characteristics: max ± 10% at 23 ° C Detection distance 73.4 ° F,
Between -25 and + 70 ° C -13 to + 158 ° F
Control output (switching capacity): 5 to 80 mA
Protection circuit: reverse polarity, surge voltage
Cable length: 2 meters 6.6 ‘
Power supply voltage: 12 to 24 VDC, ripple (p-p) up to 20%.
Current consumption (leakage current): maximum 1.0 mA, residual voltage: maximum 3.6 V. (2 m 6.6 ‘cable)
Residual voltage: up to 3.6 V (2 m 6.6 ‘cable)
Shell class: IP67
Operating temperature range: -25 to +80 ° C -13 to 176 ° F without freezing
Working environment humidity: 35 ~ 95%, no condensation
Vibration: 10 to 55 Hz in the X, Y and Z directions, 1.5 mm 0.06 “double amplitude, 2 hours
Impact resistance: 500 m / s in X, Y and Z 1640.4 ‘
Direction, 3 times
Case Material: Stainless Steel (SUS304)
Weight: about 42 grams
