KEYENCE Proximity Sensors EV series two-wire self contained amplifier proximity sensor/ Cảm biến tiệm cận.

KEYENCE Proximity Sensors EV series two-wire self contained amplifier proximity sensor/ Cảm biến tiệm cận.

KEYENCE Proximity Sensors EV series

KEYENCE Proximity Sensors EV series two-wire self contained amplifier proximity sensor.

Features:

Shorter, space saving sensor bodies with high detection sensitivity and long detection distances.

    • Compact sensor head
    • Visible output indicator built into sensor
    • Flexible cable joint
    • IP67-rated housing
Mã: 1351-10300 Danh mục:

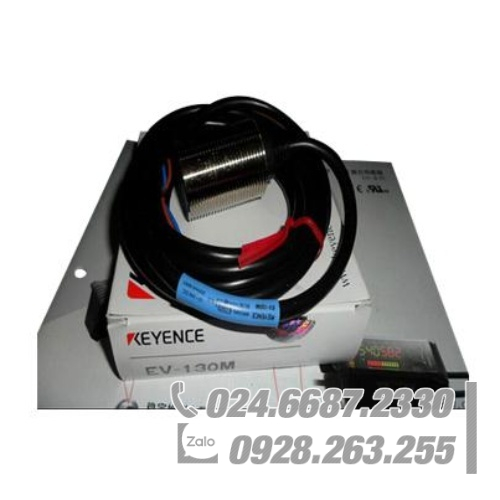

EV series EV-130M

Model:EV-130M*1
Type：DC , Shielded
Shape：M30
Detecting distance：10 mm 0.39″ ±10%
Detectable object：Ferrous metals (see Characteristics for nonferrous metals)
Standard target(iron, t=1 mm 0.04″)：30 x 30 mm 1.18″ x 1.18″
Hysteresis：10% max. of detecting distance
Response frequency：250 Hz
Operation mode：N.O.
Temperature characteristics：±10% max. of detecting distance at 23°C 73.4°F,
within -25 to +70°C -13 to +158°F
Control output(switching capacity)：5 to 200 mA
Protection circuit: Reversed polarity, short-circuit, surge voltage
