KEYENCE Proximity Sensors EM series with in-cable amplifiers proximity sensors.

KEYENCE Proximity Sensors EM series

Features:

Small, amplifier-in-cable sensor heads with built-in indicator LEDs and up to a 8-mm detecting distance.

- Ultra-small sensor head
- Amplifier and operation indicator built into cable.
- Strong, flexible cable IP-67 waterproof housing

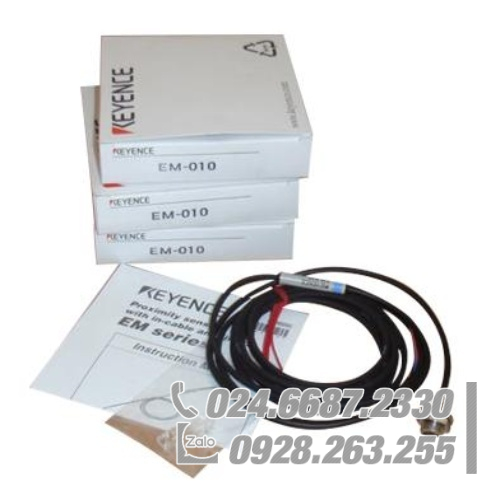

Model		EM-010
Type		Shielded
Shape		M10 Threaded
Detecting distance		2.0 mm 0.08″ ±10%
Detectable object		Ferrous metals (see Characteristics for non-ferrous metals)
Standard target (iron, t=1 mm 0.04″)		10 x 10 mm 0.39″ x 0.39″
Hysteresis		10% max. of detecting distance
Response frequency		1.2 kHz
Operation mode		N.O.
Temperature characteristics		±10% max. of detecting distance at +23°C 73.4°F, within -10 to +70°C14 to 158°F
Display indicator		Red LED
Output		NPN
Control output		NPN: 200 mA (40 V) max., Residual voltage: 1 V max.
Housing		Cr-plated brass
Rating	Power voltage	10.8 to 30 VDC, Ripple (P-P) 10% max.^*1
	Current consumption.	12 mA max.
Environmental resistance	Enclosure rating	IP67
	Operating temperature range	-25 to +80°C -13 to 176°F, No freezing
	Operating ambient humidity	35 to 95%, No condensation
Weight (including nuts and 2-m 6.6′ cable)		Approx 50 g
^*1 Make sure that the power voltage stays within 10.8 V to 30 V even if it is affected by ripple effects.
