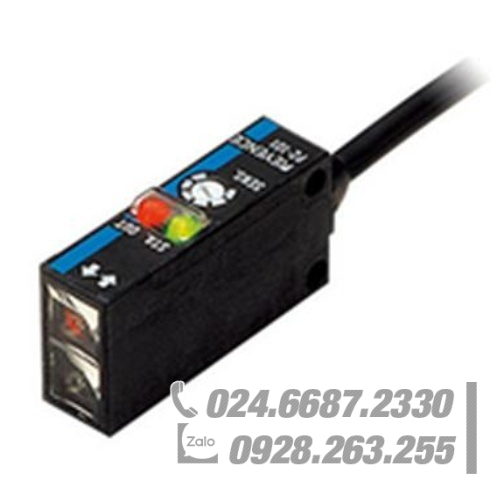

KEYENCE Photoelectric Sensors PZ-101 series
Model
PZ-101
Type
Focused-beam
Detecting distance
0 to 100 mm 3.94″
Light source
Visible red LED
Spot diameter
Approx5mm□ (when detecting distance is 50 mm )、Approx7mm□ (when detecting distance is 100 mm )
Detectable object
Transparent and opaque materials
Hysteresis
20% max. of detecting distance
Sensitivity adjustment
1-turn trimmer (240°)
Response time
1 ms max. (2 ms in alternate frequency mode)
Operation mode
LIGHT-ON/DARK-ON (selectable by wiring)
Indicator lamp
Output: Red LED, Stable operation: Green LED, Power supply: Red LED
Control output
NPN open-collector 100 mA max. (40 V max.)
Stability output
NPN: 50 mA (40 V) max.
Protection circuit
Reversed polarity, overcurrent protection
Rating
Power voltage
12 to 24 VDC ±10%
Current consumption.
30 mA max.
Environmental resistance
Enclosure rating
IP67
Operating ambientluminance
Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Operating temperature range
-20 to +55°C -4 to 131°F, No freezing
Operating ambient humidity
35 to 85%, No condensation
Vibration
10 to 55 Hz compound amplitude 1.5 mm 0.06″, 2 hours for each of X, Y, Z axis
Case material
Glass-fi ber reinforced plastic
Weight
Approx. 75 g
