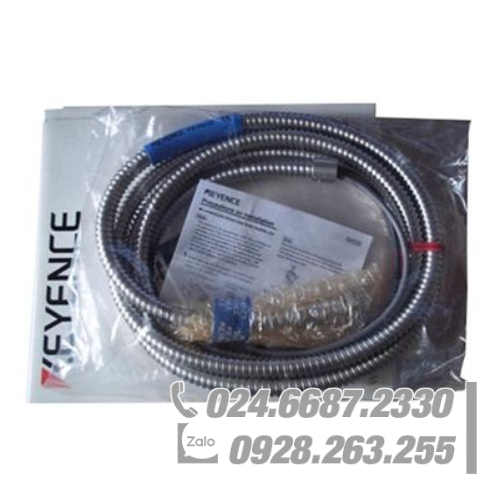

KEYENCE Photoelectric Sensors PX series PX-H61

KEYENCE Photoelectric Sensors PX series PX-H61

KEYENCE Photoelectric Sensors PX series Can be in a harsh environment for stable detection of super photoelectric sensor.

Characteristic:

The new PX series of super industrial photoelectric sensor. A solid industrial sensor designed for use in harsh environments.

7 kinds of sensor head
High power MEGA mode
The industry’s first high-resolution display

KEYENCE Photoelectric Sensors PX series PX-H61

Model		PX-H61
Type		M12 Reflective Standard
Light source LED		Red 4-element LED (Wavelength：635 nm)
Detecting distance	TURBO	400 mm 15.7″
	SUPER	600 mm 23.6″
	ULTRA	1200 mm 47.2″
	MEGA	2000 mm 78.7″
Detectable object		―
Spot diameter		Approx. 15 x 15 mm 0.59″ at 100 mm 3.94″ Approx. 65 x 65 mm 2.56″ at 500 mm 19.69″
Environmental resistance	Enclosure rating	IEC：IP68/JEM：IP68g/NEMA：4X, 6P, 13/DIN：IP69K
	Operating ambientluminance	Incandescent lamp：20000 lux max., Sunlight：30000 lux max.
	Operating temperature range	-10 to 55°C 14 to 131°F, No freezing
	Operating ambient humidity	35 to 85% RH (No condensation)
	Vibration	10 to 55 Hz double amplitude 1.5 mm 0.06″ 2 hours each in X, Y and Z axis
Case material		Housing ：SUS303 (Plastic parts：PMP, POM) Lens ：BK7
Accessories		Screw nut x 2, toothed washer x 1
Weight		Approx. 80 g^*1 (Including cable)
^*1 The PX-H71G, H72G and H61G have SUS304 spiral protective tube on the cables.
