Differential Pressure Transmitters

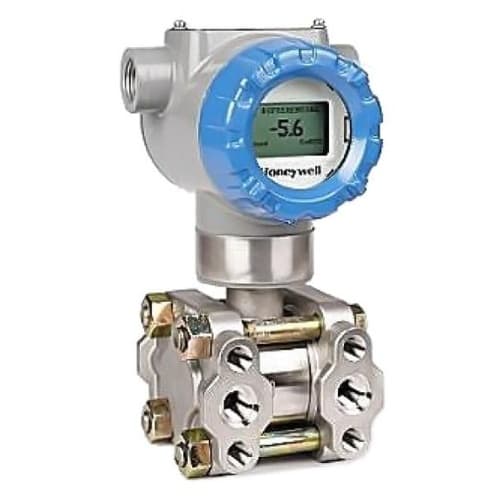

Differential Pressure Transmitters Honeywell SmartLine ST 800 bring smart technology to a wide spectrum of measurement applications.

ST 800 Differential Pressure Transmitters are ideal for critical process loops and high-value applications such as custody transfer, and energy and material balances. Five models are available with the following ranges:

  • STD810    -10 to 10 inH2O                 -25 to +25 mbar
  • STD820    -400 to +400 in H2O          -996 to +996 mbar
  • STD830    -100 to +100 psi                -6.9 to +6.9 bar
  • STD870    -3000 to +3000 psi            -207 to +207 bar

The transmitters offer the following compelling features:

  • Accuracy up to 0.025%
  • Stability of 0.01% per year
  • 90ms response time
  • Polarity-insensitive electrical connections
  • 15-year warranty
  • Tight integration with Experion® systems.
Mã: 1350-12740 Danh mục:

Honeywell SmartLine ST 800 Differential Pressure Transmitters

Introduction

Part by the SmartLine® family of products, the STD800 is a high performance differential pressure substrate bronoresistive sensor technology. By combining differential pressure sensing with on chip static pressure and temperature compensation the STD800 offers high accuracy and stability over a wide range of addressing And temperatures. The Smart levels are compatibility test and compliance with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application requirements for pressure measurement applications.

Best in Class Features:

Accuracies up to 0.035% standard & 0.025% Opt
Stability up to 0.01% of URL per year for ten years
Automatic static pressure & temperature compensation
Rangeability up to 400: 1
Response times as fast as 90ms
Multiple local display capabilities
External zero, span, & configuration capability
Polarity insensitive electrical connections
Comprehensive on-board diagnostic capabilities
Integral Dual Seal design for growing safety based on ANSI / NFPA 70-202 and ANSI / ISA 12.27.0
World class overpressure protection
Full compliance to SIL 2/3 requirements
Modular design characteristics
Available with 15 year warranty
Plugged Impulse Line Detection Option
Dual / Triple Calibration Option (HART & Fieldbus)
