Honeywell UDA2182 Universal Dual Analyzer
First the UDA2182 Universal Dual Analyzer is a new, economical and dual input analyzer addition to Honeywell’s Smart Sensor product family. Then the analyzer can accept single or dual inputs from Honeywell pH, ORP, contacting conductivity and dissolved oxygen sensors. For dual units the inputs can be ordered in any combination. The UDA2182 monitors and controls Analytical process variables in applications.
Features
Single or Dual input measurement.
Dual input in any combination of pH, ORP, contacting conductivity, or dissolved oxygen Versatile, backlit graphical display.
Infrared PC & Pocket PC configuration.

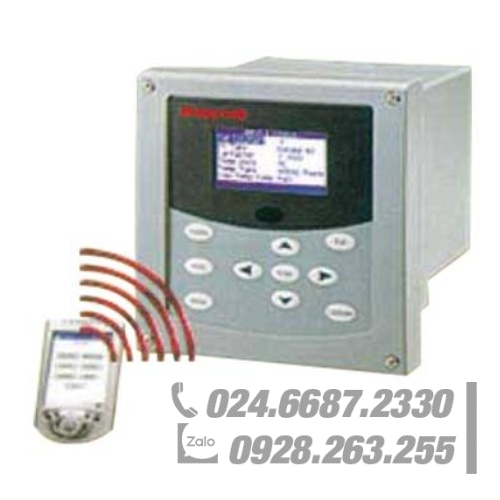

Figure 1 – Front of UDA2182 Analyzer.
Isolated inputs and outputs.
CSA Type 4X (NEMA 4) enclosure.
Multilanguage prompts.
Two analog outputs standard plus one additional optional.
Two electromechanical relays standard plus two additional optional.
Easy access through hinged front door.
Full DIN Size.
Panel, wall or pipe mounting is available.
The UDA2182 is a functional replacement for older Models 7082 and 9782 Analyzers. It will fit into the same panel cutout and has many of the same features and benefits of the former analyzers. Therefore it is compatible with existing pH and conductivity applications and installations.
The UDA2182 is UL Listed and CSA Certified. It is also CE Compliant. The unique UDA2182 display is a graphical backlit LED. Two PV values along with their Unit of Measure can be displayed.
