Pressure Transmitter

Honeywell STG700 SmartLine Transmitter easily meets the most demanding application needs for pressure measurement applications.

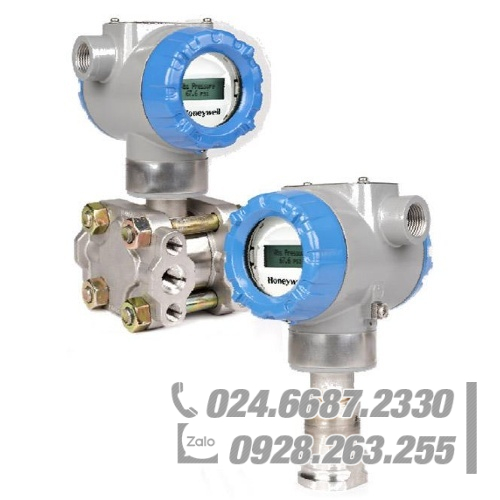

ST 700 Gauge Pressure Transmitters (STG700) are ideal for applications ranging from high-pressure measurements in boilers and fuel feeds to tank level measurement applications with a relatively high process temperature. Users have the option of choosing between dual-head and in-line models to match their process interface requirements.​​​​

Introduction

Part of the SmartLine® family of products, the STG700 and STG70L are suitable for monitoring, control and data acquisition. STG70X products feature piezoresistivesensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.  needs for pressure measurement applications.

Best in Class Features:

  • Accuracies up to 0.065 % of calibrated span
  • Stability up to 0.02% of URL per year for 5 years
  • Automatic temperature compensation
  • Rangeability up to 100:1
  • Response times as fast as 100ms
  • Alphanumeric display capabilities
  • External zero, span, & configuration capability
  • Polarity insensitive electrical connections
  • On-board diagnostic capabilities
  • Integral Dual Seal design for highest safety basedon ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  • World class overpressure protection
  • Full compliance to SIL 2/3 requirements as a standard.
  • Modular design characteristics

The following models are available for deployment:

• STG740/STG74L                     0-500 psi                        0-35 bar

• STG770/STG77L                     0-3,000 psi                     0-210 bar

• STG78L                                  0-6,000 psi                     0-420 bar

• STG79L                                  0-10,000 psi                   0-690 bar

Mã: 1350-12100 Danh mục:

Honeywell STG700 SmartLine Gauge Pressure Transmitter

ST 700 Gauge Pressure Transmitters (STG700) are ideal for applications ranging from high-pressure measurements in boilers and fuel feeds to tank level measurement applications with a relatively high process temperature. Users have the option of choosing between dual-head and in-line models to match their process interface requirements.​​​​
