Technical characteristics
1, advanced sensor technology
The use of ion implantation silicon technology, in the differential pressure sensor integrated static pressure and temperature sensor, at any time to correct the process temperature and static pressure caused by the error, improve the measurement accuracy and stability
2, high reliability: the average time between failures 470 years.
3, high stability: ± 0.01% / year
4, high precision: ± 0.065%.
5, high pressure resistance: ordinary type 21MPa, up to 42MPa
6, wide measuring range:
7, complete specifications: wetted parts of a variety of anti-corrosion materials, to meet the conditions of the use of various conditions.
Measure the object
1, differential pressure measurement
2, pressure measurement (low pressure through the atmosphere)
3, with the throttle device with the flow measurement
4, liquid level measurement (non-viscous / non-crystalline liquid)
5, interface measurement (non-viscous / non-crystalline liquid)

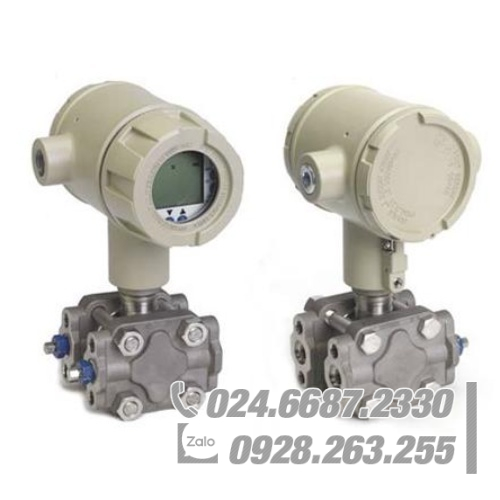

Honeywell STG18L Gauge Pressure Transmitter / đo áp suất
Pressure Transmitter
Pressure Transmitter ST 3000 Series 100 bring smart technology to a wide spectrum of measurement applications ranging from furnace combustion airflow rate to hydrostatic tank gauging. The differential pressure transmitters can be used with any primary flow element to provide proven, repeatable flow measurement.
ST 3000 Series 100 Differential Pressure Transmitters are ideal for critical process loops and high-value applications such as custody transfer and energy and material balances.
| Models | ||
| STG140/STG14L | 0 to 500 psi | 0 to 35 bar |
| STG170/STG17L | 0 to 3,000 psi | 0 to 210 bar |
| STG180/STG18L | 0 to 6,000 psi | 0 to 415 bar |
| STG19L | 0 to 10,000 psi | 0 to 690 bar |
Honeywell’s high-performance ST 3000 S100 transmitters lead the industry in:
- Total Accuracy = ±0.0375%
- Stability = ±0.01% per year
- Reliability = 470 years MTBF
- Rangeability = 400 to 1
- Lifetime Warranty = 15 years.
