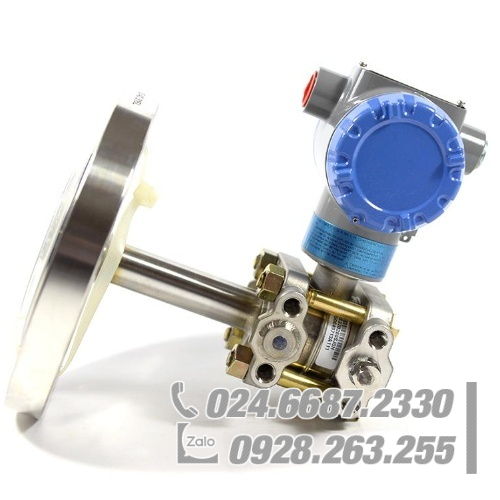

Honeywell STF73F SmartLine Flange Mounted Level Transmitter

Honeywell STF73F SmartLine Flange Mounted Level Transmitter

Level Transmitter

Level Transmitter Honeywell STF700 series is suitable for monitoring, control and data acquisition. The SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor. This one sensor actually integrates multiple sensors linkingprocess pressure measurement with on-board static pressure (DP Models) and temperature compensation measurements. This level of performance allows the ST 700 to replace most competitive transmitters available today.

Features:

  • Accuracy up to 0.065 % of calibrated span
  •  Stability up to 0.02% of URL per year for five years
  •  Automatic temperature compensation
  •  Rangeability up to 100:1
  •  Response times as fast as 100ms
  •  Alphanumeric display capabilities
  •  External zero, span, & configuration capability
  •  Polarity insensitive electrical connections
  •  On-board diagnostic capabilities
  •  Integral Dual Seal design for safety based on
  • ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  •  Full compliance to SIL 2/3 requirements as a standard.
  •  Modular design characteristics
Mã: 1350-11940 Danh mục:

Honeywell STF73F SmartLine Flange Mounted Level Transmitter

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
    Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
    Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
