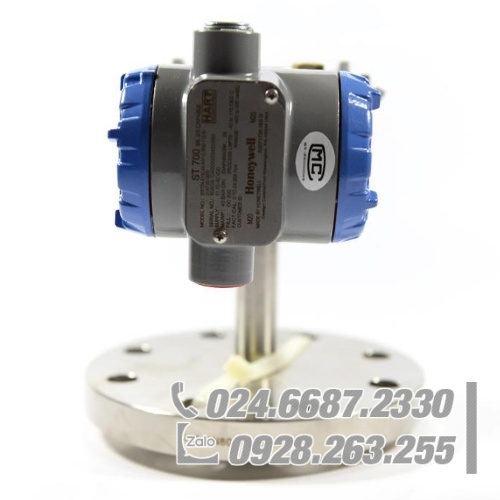

Honeywell STF724 SmartLine Flange Mounted Level Transmitters/ Đo mức

Honeywell STF724 SmartLine Flange Mounted Level Transmitters/ Đo mức

Level Transmitter

Level Transmitter Honeywell STF724 series is suitable for monitoring, control and data acquisition. The SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor. This one sensor actually integrates multiple sensors linkingprocess pressure measurement with on-board static pressure (DP Models) and temperature compensation measurements. This level of performance allows the ST 700 to replace most competitive transmitters available today.

Features:

  • Accuracy up to 0.065 % of calibrated span
  •  Stability up to 0.02% of URL per year for five years
  •  Automatic temperature compensation
  •  Rangeability up to 100:1
  •  Response times as fast as 100ms
  •  Alphanumeric display capabilities
  •  External zero, span, & configuration capability
  •  Polarity insensitive electrical connections
  •  On-board diagnostic capabilities
  •  Integral Dual Seal design for safety based on
  • ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  •  Full compliance to SIL 2/3 requirements as a standard.
  •  Modular design characteristics
Mã: 1350-11910 Danh mục:

Honeywell STF724 SmartLine Flange Mounted Level Transmitters

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
  • Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
  • Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
  • On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
