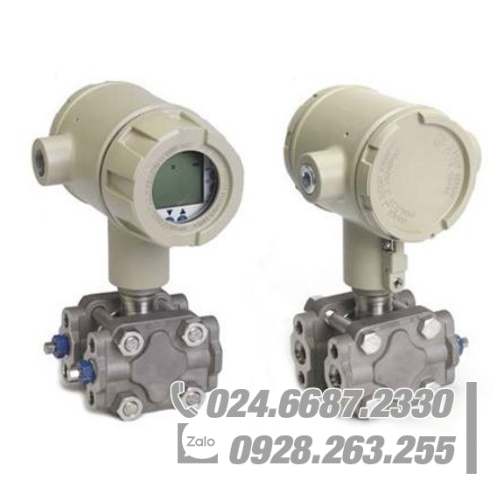

Honeywell STF128 Flange Mounted Liquid Level Pressure Transmitter / đo áp suất

Honeywell STF128 Flange Mounted Liquid Level Pressure Transmitter / đo áp suất

Pressure Transmitter

Pressure Transmitter ST 3000 Series 100 bring smart technology to a wide spectrum of measurement applications ranging from furnace combustion airflow rate to hydrostatic tank gauging. The differential pressure transmitters can be used with any primary flow element to provide proven, repeatable flow measurement.

ST 3000 Series 100 Differential Pressure Transmitters are ideal for critical process loops and high-value applications such as custody transfer and energy and material balances.

Models
STF128 0 to 400 inH2O 0 to 1,000 mbar
STF132 0 to 100 psi 0 to 7bar
STF12F 0 to 400 inH2O 0 to 1,000 mbar
STF13F 0 to 100 psi

0 to 7 bar
STF14F 0 to 600 inH2O 0 to 1,500 mbar

Honeywell’s high-performance ST 3000 S100 transmitters lead the industry in:

  • Accuracy
  • Stability
  • Reliability
  • Rangeability
  • Warranty

Includes Lifetime™ Transmitters

ST 3000 Lifetime™ Transmitter Benefits
Total Accuracy = ±0.0375%
Stability = ±0.01% per year


Reliability = 470 years MTBF
Rangeability = 400 to 1
Lifetime Warranty = 15 years
Mã: 1350-11850 Danh mục:

Honeywell STF128 Flange Mounted Liquid Level Pressure Transmitter

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
    Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
    Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
