Honeywell redundant Digital Input Module/ Module đầu vào backplane CC-TDIL11

Honeywell redundant Digital Input Module/ Module đầu vào backplane CC-TDIL11

Honeywell module

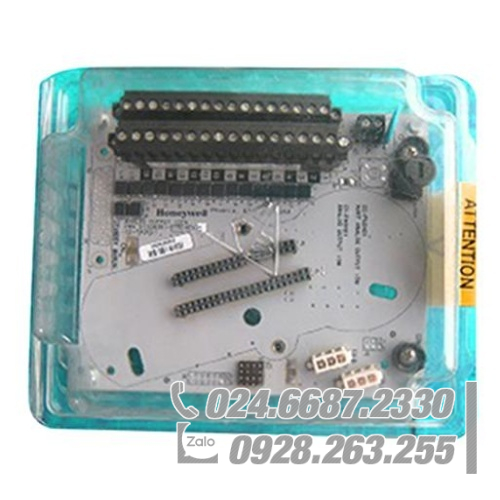

Honeywell module CC-TDIL11 PWA, DI 24V IOTA RED 32 24V

Manufacturer’s Declared Parameters
Input / Output Model CC-PDIL01 – 24Volt Digital Input

CU-PDIL01 – 24Volt Digital Input
IOTA Models CC-TDIL01

CU-TDIL01

 Non Redundant 6”
CC-TDIL11

CU-TDIL11

 Redundant 12”
Input Channels 32
Galvanic Isolation (any input terminal voltage referenced to common) 1500 VAC RMS or ±1500 VDC
Isolation Technique Optical (in IOM)
DI Power Voltage Range

ON Sense Voltage/Current

 18 to 30 VDC

13 VDC (min) or 3 mA (min)
OFF Sense Voltage/Current 5 VDC (max) or 1.2 mA (max)
Input Impedance

Absolute Delay Across Input Filter and Isolation

 4.2 KΩ

5 ms ± 20%
Field Resistance for Guaranteed ON Condition

Field Resistance for Guaranteed OFF Condition

 300 Ωmax @ 15 VDC

30 KΩmin @ 30 VDC
Mã: 1350-11410 Danh mục:

Honeywell redundant Digital input module backplane CC-TDIL11

Professional to provide a Honeywell DCS card, integrity services, absolute guarantee is part of the original Honeywell new card, the scope of services involved S9000, plantscape, TDC2000 TDC3000 (US operation station), TPS (Gus operation station), PKS and Honeywell DCS distributed control system.

Model:

51309288-225 51309512-125 MC-TAMR03 51204162-175 51403988-150
51309218-175 51304362-150 51304337-150 51305348-100 51304453-150
80363972-150 51198947-100 51309276-150 51305508-200 51305348-100
51198947-100 51309512-175 51204160-175 51191593-100 51403427-275
51309241-125 51309288-375 51304419-150 51304532-150 51201557-150
51309241-175 51404305-375 51197593-100 51304511-200 51309290-125
51201420-005 51201420-010 51304754-150 51304337-150 51204160-175 51305348-100 51304453-150
51309276-150 51405038-175 51405040-175 51405039-175 51309204-175 51304362-150 51304754-150 80363969-150 80363972-150 80363975-150 51204172-175 51304453-15051305890-17551204162-175

51304449-500 INTECOLOR CRT EA
51304451-100 DO STANDBY MANUAL P WA EA
51304453-100 FTA, HLAI/STI COMP TERM MU-TAIH02 EA
51304453-150 FTA,HLAI/STI COMP TERM CC MC-TAIH02 EA
51304456-100 MONITOR 14IN EA 51196793-100
51304465-000 POWER CABLE (ORDER INDV. LENGTH) EA
51304467-100 FTA, LLMUX/SDI/SI PWR ADAPTER EA 51309204-175
51304467-150 FTA, LLMUX/SDI/SI PWR ADAPTER EA 51309204-175
51304472-100 PWA, NGI I/O EA
51304476-100 FTA, A/O COMPR TERM EA 51304476-175
51304476-125 A/O FTA, COMP CE MU-TAOX02 EA
51304476-150 FTA, A/O EA 51304476-175
51304476-175 FTA, A/O CCCE MC-TAOX02 EA
51304477-100 LLAI RTD MUX FTA EA 51309218-125
51304477-150 FTA,LLAI MUX RTD EA 51309218-175
51304478-100 FTA,LLAI MUX TC (SEE NOTES) EA
51304481-100 LLAI IOP ASSM MU-PAIL02 EA
51304481-150 LLAI IOP ASSM CC MC-PAIL02 EA
51304483-100 PWA, AO/IOP EA 51309152-175

Còn rất nhiều sản phẩm chưa được liệt kê ở trên, nếu bạn cần, hãy liên lạc với chúng tôi để được hỗ trợ!
