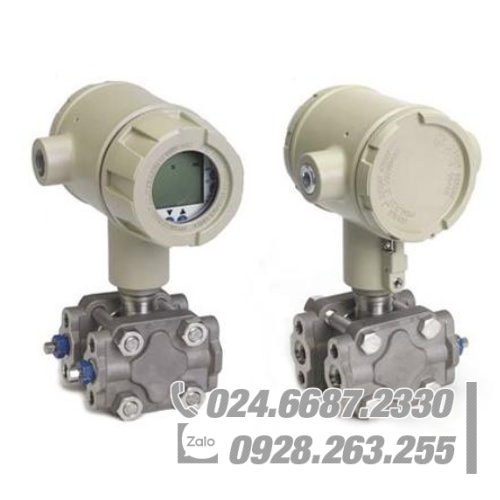

Honeywell New And Original STA14L Absolute Pressure Transmitter / đo áp suất

Honeywell New And Original STA14L Absolute Pressure Transmitter / đo áp suất

Pressure Transmitter

Pressure Transmitter Honeywell ST 3000 Series 100 Absolute Pressure Transmitters continue to bring proven “smart” technology to a wide spectrum of measurement applications. Honeywell In-line (STA12L, STA14L and STA17L) and single head (STA122 and STA140) absolute pressure transmitters are used in applications in which high accuracy in the vacuum range of pressure is needed to include low-pressure measurement in vacuum distillation columns, where energy savings are directly proportional to the vacuum in the column.

Honeywell’s high-performance ST 3000 S100 transmitters lead the industry in:
Accuracy
Reliability
Rangeability
Warranty

Models

STA122/ STA12L 0 to 780 mHgA 0 to 1,040 mbarA
STA140 / STA14L 0 to 500 psia 0 to 35 barA
STA17L 0 to 3,000 psia 0 to 206.8 bar A
Mã: 1350-11260 Danh mục:

Honeywell New And Original STA14L Absolute Pressure Transmitter

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
    Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
    Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
