Sensor Cartridge

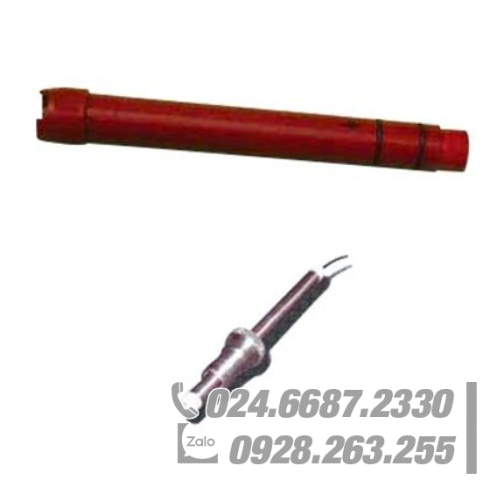

Honeywell HB 547 Multi-Installation Sensor Cartridge
What Is It?
The HB and HBD Series use a unique reference technology measurement. The HBD Series incorporates the non-glass Durafet sensor with a unique reference design.
The reference technology prevents poisoning, internal plugging and internal leakage. Complete filling of reference body allows extreme temperature and pressure tolerance.
The HB and HBD Series is available in three designs. They use different threaded connections for easy installation depending on the process. For in-line or submerged operations, the 546 uses a ¾-inch MNPT threaded nose, while the 551 used as a quick change sensor includes a 1-inch MNPT threaded adapter for installation. The 551 sensor comes with a nut-loc retainer for quick removal and replacement.
The 547 is available with a 1-inch MNPT Wrench-tite, or 1-1/4-inch MNPT Hand-tite compression fittings.
What Problems Does It Solve?
Honeywell’s HB and HBD Series of pH electrode mountings series is the preferred choice for applications involving high temperature, high pressure and aggressive chemical compositions. Rugged materials such as CPVC, Polypropylene and Kynar make these electrodes strong and virtually unbreakable.
Designed for applications involving high temperature, high pressure and harsh chemical conditions, Honeywell’s HB Series of pH electrode mountings provide a solution for all pH needs, along with Meridian glass pH electrodes and Durafet® non-glass electrodes. The electrode assembly in the pH electrode mountings is constructed with rugged materials such as CPVC, Polypropylene and Kynar.
The HBD Series is best suited for the harshest conditions, providing long life as compared to traditional pH.
