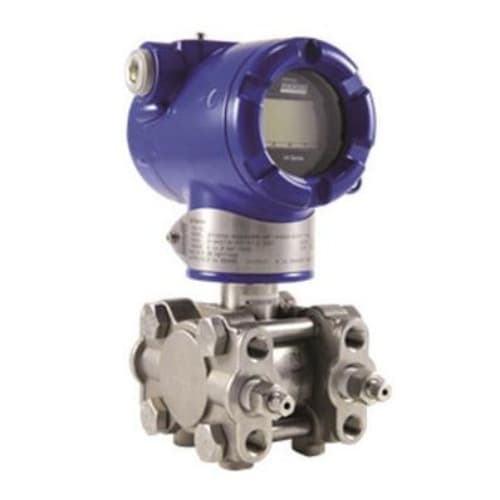

Foxboro IDP32 Intelligent Differential Pressure Transmitter / đo áp suất

Foxboro IGP60 Intelligent Gauge Pressure Transmitter / đo áp suất

For demanding gauge pressure measurement applications that require a rugged, robust and reliable transmitter, the Foxboro® I/A Series® Pressure Transmitters provide the best solution.

The Foxboro brand I/A Series® Gauge Pressure IGP60G Transmitter is a microprocessor-based smart transmitter that provides precise, reliable, measurement of gauge pressure and features high performance and excellent stability. Capable of measuring gas, liquid, vapor, and liquid levels, it transmits 4 to 20mA DC analog and digital signals according to the measured gauge pressure. It can also execute two-way communications using HART protocol, thus facilitating self-diagnosis, range resetting, and automatic zero adjustment.

Key Benefits

  • Simple, elegant sensor packaging uses very few parts to achieve exceptionally high reliability
  • Liquid Crystal Display (LCD) digital indicator with on-board pushbutton configuration and calibration.
  • Unique characterization and composite semiconductor sensors realize high accuracy up to 0.04% F.S.
  • Proven Sensor technology enables Long-term stability up to 0.1% of URL per 10-year period.
  • A wide measuring range is available from a single model. This feature is highly effective in taking measurement over a wide range and reducing the need for inventory.
  • Measuring Span: 2.5 to 500 psi
  • Rangeability 200 to 1 (17.5 to 3500kPa)
  • Two-way communication using HART protocol facilitates self-diagnosis, range resetting, automatic zero adjustment, and other operations.
  • HART communication protocol
  • SIL2 rated
  • Complies with 89/336/EEC, 92/31/EEC, and 93/68/EEC Electromagnetic Compatibility (EMC) Directive.
  • Complies with FM Explosionproof and Dust Approvals, FM Intrinsically Safe Approval, and FM Nonincendive Approval.
  • Complies with ATEX Flameproof and Dust, ATEX Intrinsic safety and Dust, and ATEX Type n and Dust Certifications
  •  Best in the industry – 5 year warranty
Mã: 1349-10070 Danh mục:

For demanding pressure measurement applications that require a rugged, robust and reliable transmitter, the Invensys Foxboro® I/A Series® System Premium Performance Transmitters provide the best solution.

The Foxboro brand I/A Series System Enterprise Control System Component Differential Pressure Transmitter family are microprocessor-based smart transmitters that provide precise, reliable, measurement of differential pressure and features high performance and excellent stability. Capable of measuring gas, liquid, vapor, and liquid levels, it transmits 4 to 20mA DC analog and digital signals according to the measured differential pressure. It can also execute two way communications using HART protocol, thus facilitating self-diagnosis, range resetting, and automatic zero adjustment.

ABOUT FOXBORO PRESSURE TRANSMITTERS
Invensys Foxboro® pressure transmitters combine field-proven, reliable silicon straingauge sensor technology with simplified, durable packaging. The Foxboro pressure transmitter family covers a broad range of pressure and level uses; including differential, gauge, and absolute pressure, as well as remote seal flanged level. Each pressure transmitter uses the same innovative topworks packaging with modular intelligent electronics, which greatly simplifies installation, operation, servicing, and spare parts requirements.

BENEFITS

•    Reduced maintenance and long-term operating costs
•    Improved performance for greater production efficiency
•    Faster and less frequent calibration
•    Flexible mounting configuration for easier, less expensive installation
•    Rapid product delivery for on-time completion of scheduled procedures
