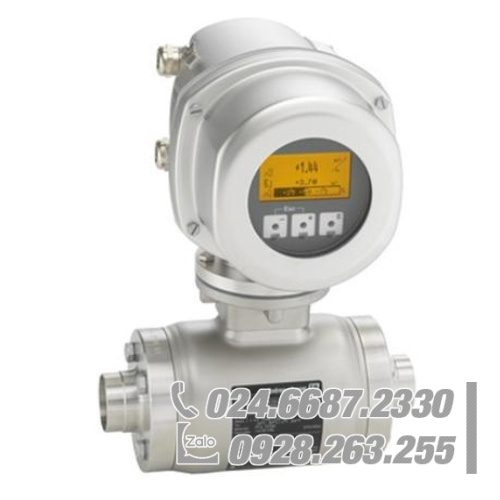

Endress Hauser Electromagnetic Flowmeter Proline Promag 55H
Application
Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum conductivity of
≥ 5 μS/cm – in particular fluids that are not
homogeneous, fluids with entrained solids or fluids that tend to produce buildup, for example:
• Fruit mashes, fruit concentrates and final products
(salad dressings, soups with vegetable pieces)
• Beverages, e.g. fruit juice, beer, wine
• Dairy products, fruit juice mixes
• Saline solutions
• Acid, alkalis etc.
• Chemically inhomogeneous fluids (e.g. additives)
• Flow measurement up to 600 m³/h
(2650 gal/min)
• Fluid temperature up to +150 °C (+302 °F)
• Process pressures up to 40 bar (580 psi)
• Fitting lengths as per DVGW/ISO
• CIP-/SIP cleaning
• Stainless steel housing
The tried-and-tested Promag sensors offer:
• Excellent accuracy and repeatability
• Optimum operational safety due to advanced, permanent self-diagnosis
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning
