Application

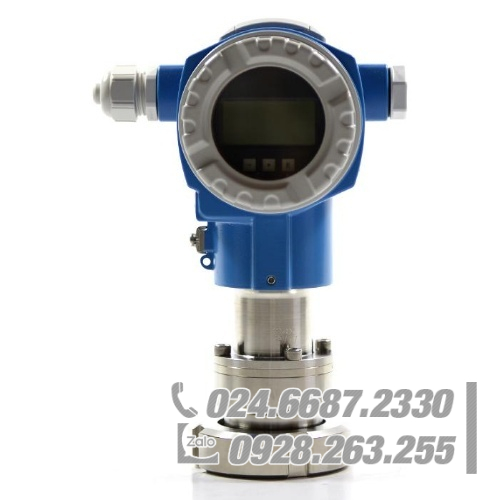

The Cerabar S pressure transmitter is used for the
following measuring tasks:
– Absolute pressure and gauge pressure in gases, steams
or liquids in all areas of process engineering and
process measurement technology
– Level, volume or mass measurement in liquids
– High process temperature
– without diaphragm seals up to 150°C (302°F)
– with typical diaphragm seals up to 350°C (662°F)
– High pressure up to 700 bar
– International usage thanks to a wide range of approvals
Your benefits
• Very good reproducibility and long-term stability
• High reference accuracy: up to 0.075 %,
as PLATINUM version: 0.05 %
• Turn down up to 100:1, higher on request
• Used for process pressure monitoring up to SIL3,
certified to IEC 61508 by TÜV SÜD
• HistoROM®/M-DAT memory module
• Function-monitored from the measuring cell to the
electronics
• Continuous modularity for differential pressure,
hydrostatics and pressure (Deltabar S – Deltapilot S –
Cerabar S), e.g.
– replaceable display
– universal electronics
• Quick commissioning with Quick Setup menu
• Menu-guided operation
• Extensive diagnostic functions
• Device versions compliant with ASME-BPE
