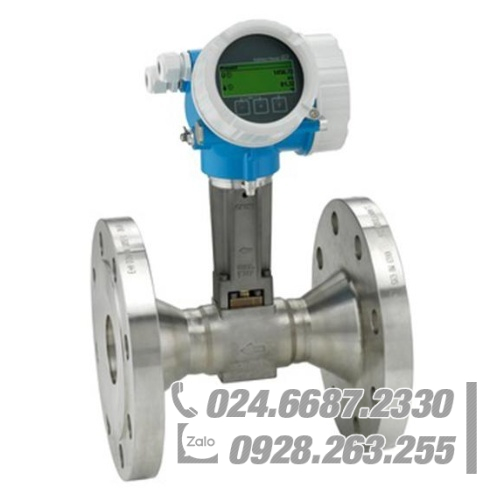

Endress Hauser Proline Prowirl O 200 Vortex Flow Meters

    Endress Hauser Proline Prowirl O 200 Vortex Flow Meters

    Vortex Flow Meters

    Vortex Flow Meters Prowirl O 200 offers industry-compliant two-wire technology for seamless integration into existing infrastructures and control systems.

    • Brand :Endress Hauser
    • Model:Endress Hauser Proline Prowirl O 200 Vortex Flow Meters
    • Diameter：DN 15 to 150 (½ to 6″)
    • Measurement error：Volume flow (liquid): ±0.75 %
      Volume flow (steam, gas): ±1.00 %
      Mass flow (liquid): ±0.85%
      Mass flow (steam, gas): ±1.7 %
    • Range: Liquid: 0.16 to 545 m³/h (0.09 to 321 ft³/min)
      depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
      Steam, gas: 2 to 7262 m³/h (1.18 to 4274 ft³/min)
      depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)
    • Output:4‐20 mA HART (passive)
      4‐20 mA (passive)
      Pulse/frequency/switch output (passive)
    • Input:4‐20 mA (passive)
    Mã: 1347-10720 Danh mục:

    Endress Hauser Proline Prowirl O 200 Vortex Flow Metersr

    Application
    • Preferred measuring principle for wet/saturated/ superheated steam, gases & liquids (also cryogenic)
    • The specialist for applications with very high process pressure

    Device properties
    • Process pressure up to PN 250 (Class 1500)
    • DSC sensor made of Titanium (PN > 160 bar/Cl.600)
    • Face-to-face length according to industry standard
    • Display module with data transfer function
    • Robust two-chamber housing
    • Plant safety: worldwide approvals (SIL, Haz. area)

    Your benefits
    • Integrated temperature measurement up to PN 160 (Class 600)
    • Highest mechanical integrity for flow measurement – special measuring tube material
    • High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer
    • No maintenance – lifetime calibration
    • Convenient device wiring – separate connection compartment
    • Safe operation – no need to open the device due to display with touch control, background lighting
