Endress Hauser Proline Prowirl F 200 Vortex Flow Meters

    Endress Hauser Proline Prowirl F 200 Vortex Flow Meters

    Vortex Flow Meters

    Vortex Flow Meters Endress Hauser Proline Prowirl F 200 with detection of wet steam conditions, available as compact or remote version.

    The Prowirl F measuring tube is the first choice in heavy duty applications. The proven and patented capacitive DSC sensor ensures high precision measured values even under the toughest process conditions. Prowirl F 200 offers wetsteam detection and industry-compliant two-wire technology for seamless integration into existing infrastructures and control systems, as well as high operational safety in hazardous areas thanks to an intrinsically safe design, and a familiar installation procedure.

    Mã: 1347-10710 Danh mục:

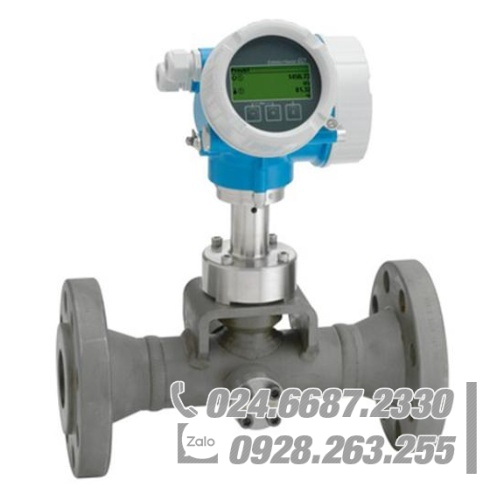

    Endress Hauser Proline Prowirl F 200 Vortex mass flowmeter

    Application
    • Preferred measuring principle for wet/saturated/ superheated steam, gases and liquids (also cryogenic)
    • Suitable for a wide range of applications; optimized for steam applications

    Device properties
    • Wet steam detection and measurement for DN 25 to 100
    • Inlet run compensation
    • Face-to-face length according to industry standard
    • Display module with data transfer function
    • Robust dual-compartment housing
    • Plant safety: worldwide approvals (SIL, Haz. area)

    Your benefits
    • Integrated temperature measurement for mass/energy flow of saturated steam
    • Highest process safety – dualsens version enables redundant measurement
    • High availability – proven robustness, resistance to vibrations, temperature shocks and water hammer
    • No maintenance – lifetime calibration
    • Convenient device wiring – separate connection compartment
    • Safe operation – no need to open the device due to display with touch control, background lighting
