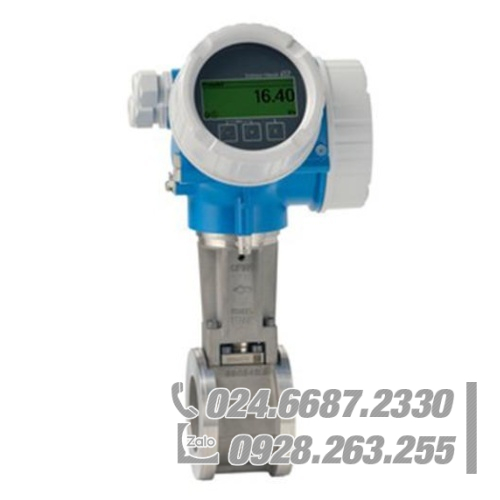

Endress Hauser Proline Prowirl D 200 Vortex Flow Meters

    Endress Hauser Proline Prowirl D 200 Vortex Flow Meters

    Vortex Flow Meters

    Vortex Flow Meters Endress Hauser Proline Prowirl D 200 is installed between flanges and mainly used for light duty applications.

    The Prowirl D measuring tube is a disc/wafer model. The flowmeter is installed between flanges and mainly used for light duty applications. The proven and patented capacitive DSC sensor ensures high precision measured values. Prowirl D 200 offers industry-compliant two-wire technology for seamless integration into existing infrastructures and control systems, as well as high operational safety in hazardous areas thanks to an intrinsically safe design, and a familiar installation procedure.

    Mã: 1347-10700 Danh mục:

    Endress Hauser Proline Prowirl D 200 Vortex Flow Meters

    Application
    • Preferred measuring principle for wet/saturated/ superheated steam, gases & liquids (also cryogenic)
    • For all basic applications and for 1-to-1 replacement of orifice plates

    Device properties
    • Face-to-face length of 65 mm (2.56 in)
    • No flanges
    • Low weight
    • Display module with data transfer function
    • Robust dual-compartment housing
    • Plant safety: worldwide approvals (SIL, Haz. area)

    Benefits

    Built-in temperature measurement for saturated steam mass and energy flow measurements.
    With central ring, sensor calibration easy
    High Availability: good stability, high shock resistance, resistance to temperature shocks and water hammer
    No maintenance: Calibration Lifecycle
    Meter easy wiring, separate wiring compartment
    Operational safety: a display module with touch keys, backlit display, without having to open the instrument operation
    Built-in verification technology: Technology heartbeat

    Your benefits
    • Integrated temperature measurement for mass/energy flow of saturated steam
    • Easy alignment of the sensor – included centering rings
    • High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer
    • No maintenance – lifetime calibration
    • Convenient device wiring – separate connection compartment
    • Safe operation – no need to open the device due to display with touch control, background lighting
    • Integrated verification – Heartbeat Technology™
