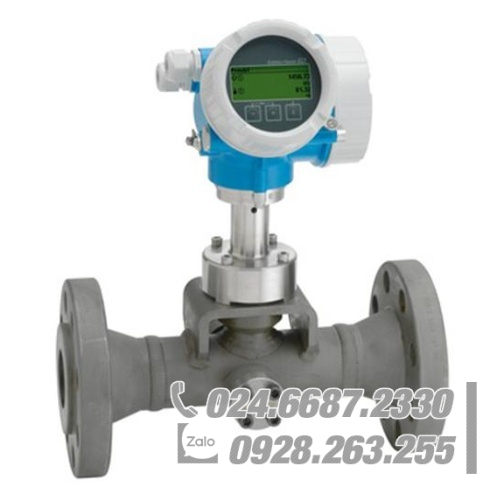

Endress Hauser Proline Prowirl C 200 Vortex Flow Meters

    Endress Hauser Proline Prowirl C 200 Vortex Flow Meters

    Vortex Flow Meters

    Vortex Flow Meters Endress Hauser Proline Prowirl C 200 is a product line of carbon steel vortex meters dedicated to the Canadian and American market.

    • Brand :Endress Hauser
    • Model:Endress Hauser Proline Prowirl C 200 Vortex Flow Meters
    • Diameter：DN 50 to 150 (2 to 6″)
    • Measurement error：Volume flow (liquid): ±0.75 %
      Volume flow (steam, gas): ±1.00 %
      Mass flow (liquid): ±0.85%
      Mass flow (steam, gas): ±1.7 %
    • Range: Liquid: 0.99 to 545 m³/h (0.58 to 321 ft³/min)
      depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
      Steam, gas: 13.8 to 7262 m³/h (8.12 to 4274 ft³/min)
      depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)
    • Output:4‐20 mA HART (passive)
      4‐20 mA (passive)
      Pulse/frequency/switch output (passive)
    • Input:4‐20 mA (passive)
    Mã: 1347-10690 Danh mục:

    Endress Hauser Proline Prowirl C 200 Vortex Flow Meters

    Application
    • Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)
    • For steam applications with high chloride content (SAGD) aligned with AER Directive 017 Guidelines

    Device properties
    • Sensor made of carbon steel
    • Material for low medium temperatures
    • Display module with data transfer function
    • Robust two-chamber housing
    • Plant safety: CSA C/US and SIL approvals

    Your benefits
    • Compliance to AER – enables customer to fullfil inspection requirements
    • Higher process control – unique inspection concept allows visual assessment of primary element
    • High process safety – resistant to inter-granular stress corrosion cracking
    • Convenient device wiring – separate connection compartment
    • Safe operation – no need to open the device due to display with touch control, background lighting
    • Integrated verification – Heartbeat Technology™
