Endress Hauser Proline Promass O 100 Coriolis mass Đồng hồ đo lưu lượng

Endress Hauser Proline Promass O 100 Coriolis mass Đồng hồ đo lưu lượng

mass flowmeter

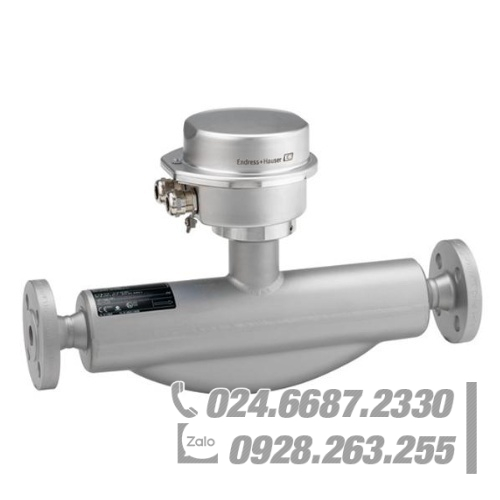

mass flowmeter Endress Hauser Proline Promass O 100 is the robust high-pressure flowmeter with an ultra-compact transmitter.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass O 100 Coriolis mass flowmeter
  • Diameter：DN 80 to 250 (3 to 10″)
  • Measurement error：Mass flow (liquid): ±0.1 (standard), 0.05 % (option)
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 %
    Density (liquid): ±0.0005 g/cm³
  • Range:0 to 800 000 kg/h (0 to 29 400 lb/min)
  • Pressure range:PN 250, Class 1500
  • Process Temperature: –40 to +205 °C (–40 to +401 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None
Mã: 1347-10660 Danh mục:

Endress Hauser Proline Promass O 100 Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Premium accuracy at highest process pressures, fully
suitable for onshore/offshore conditions
Device properties
• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)
• Process pressure up to PN 250 (Class 1500)
• Nominal diameter: DN 80 to 150 (3 to 6″)
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Premium accuracy at highest process pressures, fully
suitable for onshore/offshore conditions
Device properties
• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)
• Process pressure up to PN 250 (Class 1500)
• Nominal diameter: DN 80 to 150 (3 to 6″)
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available
