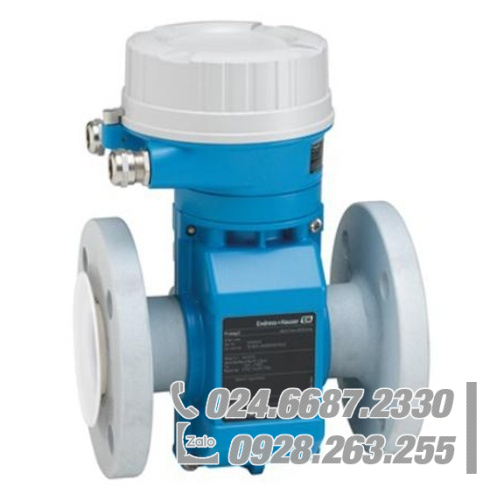

Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag E 100

Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag E 100

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag E 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers

  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag E 100
  • Diameter：DN 15 to 600 (½ to 24″)
  • Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
    Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
  • Range:4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)
  • Pressure range: PN 40, Class 150, 20K
  • Process Temperature: –10 to +110 °C (+14 to +230 °F)
  • Output: 4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None
Mã: 1347-10270 Danh mục:

Endress Hauser Electromagnetic Flowmeter Proline Promag E 100

Application
• The measuring principle is practically independent of pressure, density, temperature and viscosity
• Perfectly suitable for basic applications in the chemical and process industry
Device properties
• Nominal diameter: max. DN 600 (24″)
• Ex approvals for Zone 2
• PTFE liner
• Robust, ultra-compact transmitter housing
• Local display available

Your benefits
• Low-cost sensor – ideal solution for basic requirements
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Space‐saving transmitter – full functionality on smallest footprint
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology™
