Application

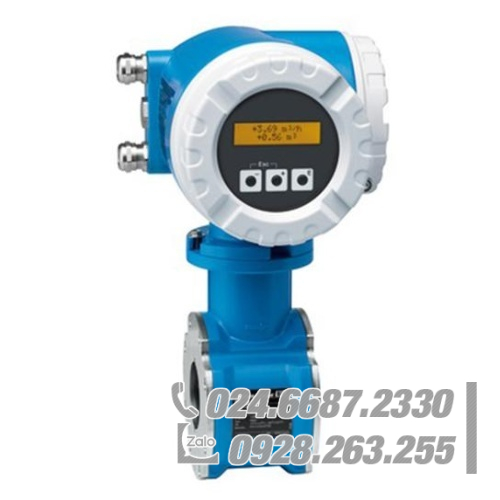

Electromagnetic flowmeter for bidirectional measurement of liquids with:
• A minimum conductivity of 5 μS/cm
– Drinking water
– Wastewater
• Flow measurement up to 4700 dm³/min
(1250 gal/min)
• Fluid temperature up to +60 °C (+140 °F)
• Process pressures up to 16 bar (232 psi)
• Polyamide lining material
• Drinking water approvals:
– KTW/W270
– WRAS BS 6920
– ACS
– NSF 61
Connection to process control system:
• HART
• PROFIBUS DP/PA
Your benefits
The measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions.
The uniform Proline transmitter concept comprises:
• High level of efficiency thanks to modular device
concept
• High degree of reliability and measuring stability
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning
• Compact design
