Azbil Valve Positioner

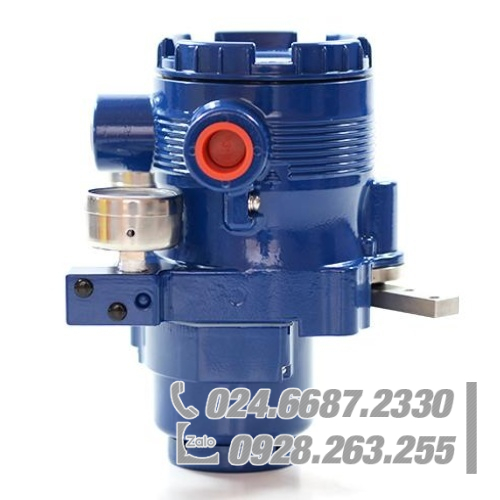

Azbil Valve Positioner SVP3000 Alphaplus Smart Valve Positioner Model AVP102
FEATURES
Easy to use, easy to maintain
•
Auto setup
Its auto-setup software is a fully- automatic configuration
program.
Unlike other brands of smart positioner, the SVP3000
Alphaplus has no external device requirements. No
handhelds or Pc are required for basic configuration and
the program can be run off a switch.
Smart field communication
Smart communication is possible for calibration and
configuration of SVP using an Azbil Corporation’s Field
Communication Software (CommStaff) model CFS100
that is compatible for use with all an Azbil Corp. smart
field instruments.
Positive seating setting
When the process needs tight shut-off of valves, this
setting assures valve’s original shut-off performance
continuously by cutting off unnecessary supply pressure to
actuator at a specified signal point.
•
Flow characteristic customization
Valve’s overall characteristics can be modified to suit the
installed process by setting customized In/Out
characteristic of positioner.
Precise split-range setting
SVP can be installed for split range applications with no
extra instrumentation. Because signal range can be
configured easily using the Smart Field Communicator,
you can optimize positioner’s signal range to the process
character.
Effective and reasonable maintenance
Reduce spare-parts inventory
Because every specification can be changed through
software configuration, lower spare parts inventory is
possible.
NEPSI Intrinsically safe approval for model
AVP102
Ex ia IIC T4-T6 Ga
T4 at -40°C to +60°C
T5 at -40°C to +60°C
T6 at -40°C to +40°C
The barriers should be NEPSI certified types and comply
with the following condition as follows.
Ui=30V, Ii=100mA, Pi=1.0W, Ci=0.015μF, Li=0.2mH
The circuit shall be considered to be connected to ground
from a safety point of view.
