Yokogawa Transmitter

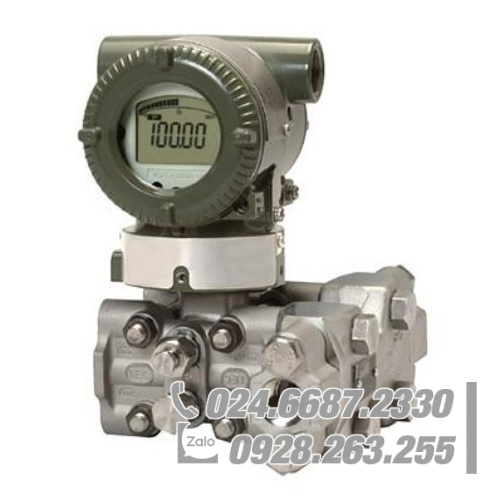

EJA115E Low Flow Yokogawa Transmitter
The low flow transmitter EJA115E is a differential pressure transmitter assembled with an integral orifice and excellent for very low flow measurement.
It outputs a 4 to 20 mA DC signal corresponding to the measured flow. Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, certify as complying with SIL2 for safety requirement.
The EJA115E is Differential Pressure Transmitter in the series that optimized for low flow applications with the addition of an Integral Flow Orifice (IFO).
EJA115E features include:
- 0.055% Square Root Output Accuracy
- 0.1% per 7 years Stability (DP)
- 90 ms ~ 150 ms Response Time
- SIL 2 / SIL 3 (IEC 61508) Certified
- Local Parameter Setting (LPS)
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, BRAIN communication.
