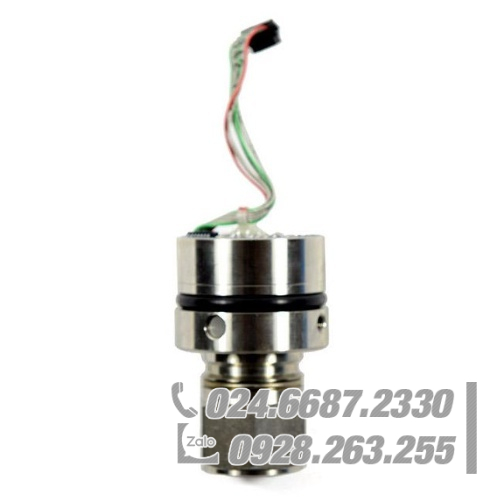

Yokogaw sensor for EJA510A and EJA530A

Measurement span

(capsule)

 L……….. 0.5 to 10 kPa {50 to 1000 mmH 2 O} {2 to 40 inH 2 O} {5 to 100 mbar}
M……….. 1 to 100 kPa {100 to 10000 mmH 2 O} {4 to 400 inH 2 O} {10 to 1000 mbar}
H………… 5 to 500 kPa { 0.05 to 5 kgf/cm 2 } {20 to 2000 inH 2 O} {50 to 5000 mbar}
V………… 0.14 to 14 MPa { 1.4 to 140 kgf/cm 2 } *1  {20 to 2000 psi} {1.4 to 140 bar}
Wetted parts

material * 2



S #……..

H #……..

M #……..

T #………

A #……..
D #……..
B #………

[Body] *2            [Capsule]             [Vent plug]

SCS14A               SUS316L *5         SUS316 *13

SCS14A               Hastelloy C-276 *6*12    SUS316 *13

SCS14A               Monel *6              SUS316 *13

SCS14A               Tantalum *6          SUS316 *13

Hastelloy C-276 equivalent *3  Hastelloy C-276 *6*12   Hastelloy C-276 *12

Hastelloy C-276 equivalent *3  Tantalum *6  Hastelloy C-276 *12

Monel equivalent *4    Monel *6            Monel
Mã: 1344-11960 Danh mục:

pressure sensor

SUS316L B membrane pressure transmitter pressure sensor

The absolute and gauge pressure transmitter model
EJA510A and EJA530A can be used to measure
liquid, gas, or steam pressure. Both output a 4 to 20
mA DC signal corresponding to the measured pressure,
and also feature remote setup and monitoring
through communications with the BRAIN™ terminal
and CENTUM CS™ or μXL™ or HART® 275 host.
STANDARD SPECIFICATIONS
Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “ ”.
PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability, values are in absolute for
EJA510A)
