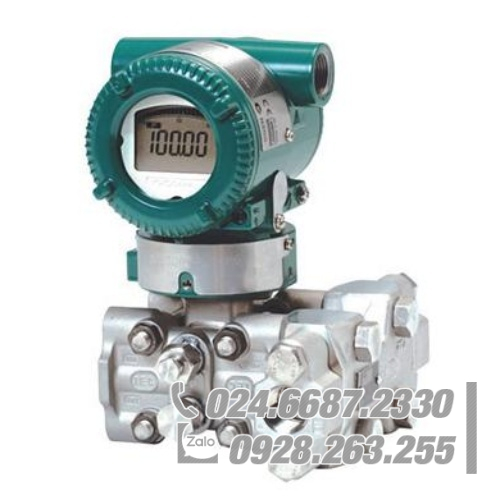

Yokogawa transmitter EJX115A Low Flow Transmitter

Yokogawa transmitter EJX115A Low Flow Transmitter

Yokogawa transmitter

Yokogawa transmitter EJX115A Low Flow Transmitter

The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX115A is Differential Pressure Transmitter in the series that is optimized for low flow applications with the addition of an Integral Flow Orifice (IFO).

EJX115A features include:

  • 0.04% Square Root Output Accuracy
  • 0.1% per 10 years Stability (DP)
  • 90 ms ~ 150 ms Response Time
  • TUV SIL 2 (IEC 61508) Certified
  • Local Parameter Setting (LPS)
Mã: 1344-11850 Danh mục:

Yokogawa transmitter

Yokogawa transmitter EJX115A Low Flow Transmitter

The low flow transmitter EJX115A is a differential pressure transmitter assembled with an integral orifice and excellent for very low flow measurement.
It outputs a 4 to 20 mA DC signal corresponding to the measured flow. Its highly accurate and stable sensor can also measure the static pressure which can show on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available.

All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV as complying with SIL 2 for safety requirement.
