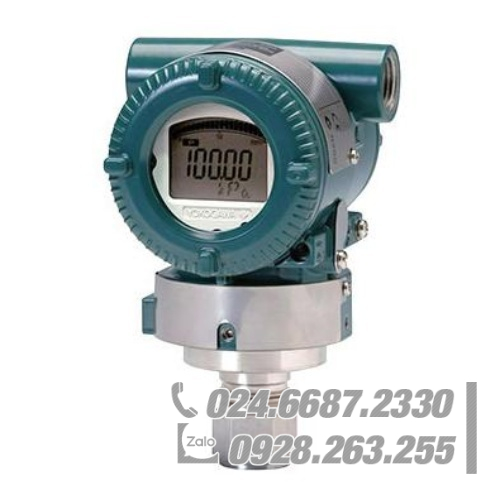

Yokogawa EJX510A EJX530A Absolute Gauge pressure transmitter
The high performance absolute and gauge transmitter EJX510A and EJX530A feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure. EJX510A and EJX530A output a 4 to 20 mA DC signal corresponding to the measured pressure. It also
features quick response, remote setup and monitoring via BRAIN or HART communications, diagnostics, and optional status output for pressure high/low alarm.
The multisensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available.
All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV as complying with SIL 2 for safety requirement.
The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it a thoroughbred of the DPharp family of pressure transmitters.
The EJX510A is the In-Line mount Absolute Pressure Transmitter in the series.
EJX510A features include:
- 0.04% Accuracy
- 0.2% for 10 years Stability
- 10,800 psig Maximum Over Pressure
- 90 ms Response Time
- TUV SIL 2/3 (IEC61508) Certified
- Local Parameter Setting (LPS)
