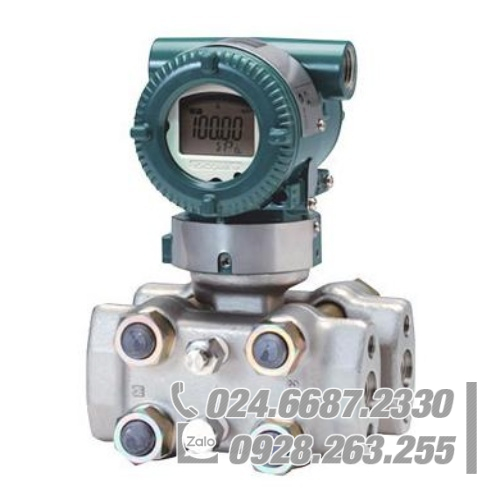

Yokogawa EJX130A Differential Pressure Transmitter
The high performance pressure transmitter EJX130A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJX130A outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.
Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat
trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available. All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV as complying with SIL 2 for safety requirement.
Vibration Effects
Amplifier housing code 1 and 3:
Less than 0.1% of URL when tested per the
requirements of IEC60770-1 field or pipeline
with high vibration level (10-60 Hz, 0.21 mm
displacement/60-2000 Hz 3 g)
Amplifier housing code 2:
Less than ±0.1% of URL when tested per the
requirements of IEC60770-1 field with general
application or pipeline with low vibration level (10-60
Hz 0.15mm displacement /60-500 Hz 2g)
