Diaphragm Seals Pressure Transmitter

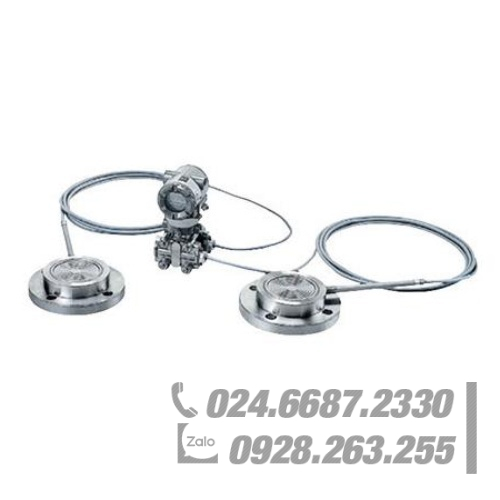

Yokogawa EJA118 DP Transmitter with Remote Diaphragm Seals Pressure Transmitter
Diaphragm seals use to prevent process medium form entering directly into the pressure-sensing assembly. They connecteto the transmitter using capillaries filled with fill fluid.
Model EJA118W, EJA118N and EJA118Y Diaphragm Sealed Differential Pressure Transmitters can be used to measure liquid, gas, or steam flow, as well as liquid level, density, and pressure. They output a 4 to 20 mA DC signal corresponding to the measured pressure differential.
The transmitters also feature remote setup and monitoring through communications.
Features:
- Excellent performance and stability
The EJA series uses a formed from monocrystal silicon, a perfect material. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.
- Compact and light-weight design
Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.
- Fieldbus communication capability
Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor.
EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.
