Differential Pressure Transmitter

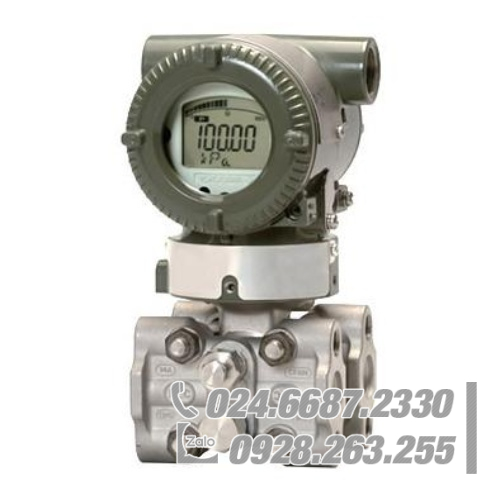

Yokogawa EJA110E Differential Pressure Transmitter
The high performance differential pressure transmitter EJA110E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJA110E outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.
Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception
of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.
The EJA110E is our standard traditional-mount differential pressure transmitter in this series.
EJA110E features include:
- 0.055% Accuracy (0.04% Accuracy option)
- 0.1% Stability for 7 years
- MWP 2,300 psi (MWP 3,600 psi option)
- 90 ms Response Time
- Local Parameter Setting (LPS)
- SIL 2 (IEC 61508) Certified
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
