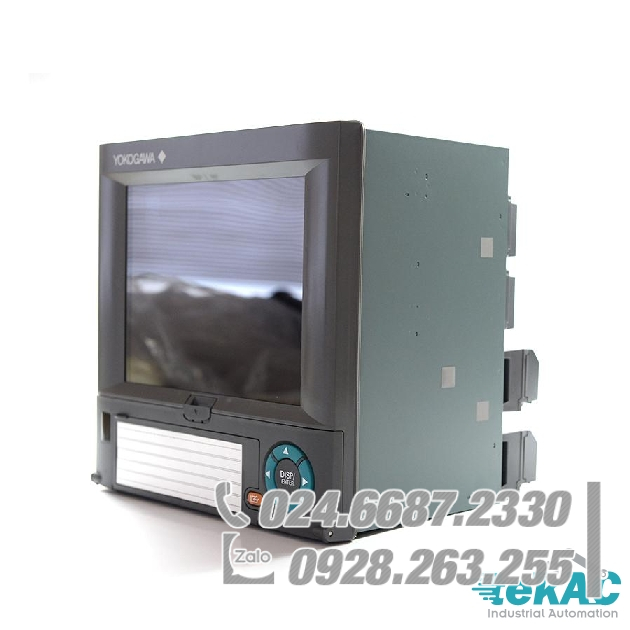

Yokogawa DX2008 Paperless Recorder

Construction

Mounting: Flush panel mounting (on a verticalplane)

Mounting may be inclined downward upto

30 degrees from a horizontal plane.

Allowable panel thickness:

2 to 26 mmMaterial: Case: drawn steel

Bezel: polycarbonateDisplay

filter: polycarbonateCase color

Case: Grayish blue green

(Munsell 2.0B 5.0/1.7 or equivalent)

Bezel: Charcoal grey light

(Munsell 10B 3.6/0.3 or equivalent

)Front panel:Water and dust-proof*

(based on IEC529-IP65 and NEMANo.

250 TYPE4 for indoor locations

(except external icing test))

*Except for side-by-side mounting.

Dimensions:288 (W) × 288 (H) × 221.

6 (D) mm288 (W) × 288 (H) × 226 (D)

*mm *In case of /H2 or /PM1 option is specified.

Weight: DX2004, DX2010: approx. 6.0 kg*DX2008,

DX2020: approx. 6.3 kg*DX2030

: approx. 6.9 kg*DX2040,

DX2048: approx. 7.3 kg* *without

optional featuresDisplay data file (approx.)

Trend update rate(time/div)

15 s 30 s 1 min 2 min 5 min 10

minSampling period 0.5 s 1 s 2 s 4 s 10 s

20 sSampling time 27.8 h 2 days

4 days 9 days 23 days 46 daysEvent data file (approx.)

Sampling period 25 ms 125 ms 0.5 s

1 s 2 s 5 s 10 sSampling time

2.3 h 11.6 h 46.3 h 3 days

7 days 19 days 38 daysLow voltage

directive:EN61010-1, EN61010-2-030

compliant,Installation category II*1,

pollutiondegree 2*2,

measurement category II*3

DX2004 4ch, 125ms (Fast sampling mode: 25ms)
DX2008 8ch, 125ms (Fast sampling mode: 25ms)
DX2010 10ch, 1s (Fast sampling mode: 125ms)
DX2020 20ch, 1s (Fast sampling mode: 125ms)
DX2030 30ch, 1s (Fast sampling mode: 125ms)
DX2040 40ch, 1s (Fast sampling mode: 125ms)
DX2048 48ch, 1s (Fast sampling mode: 125ms)
