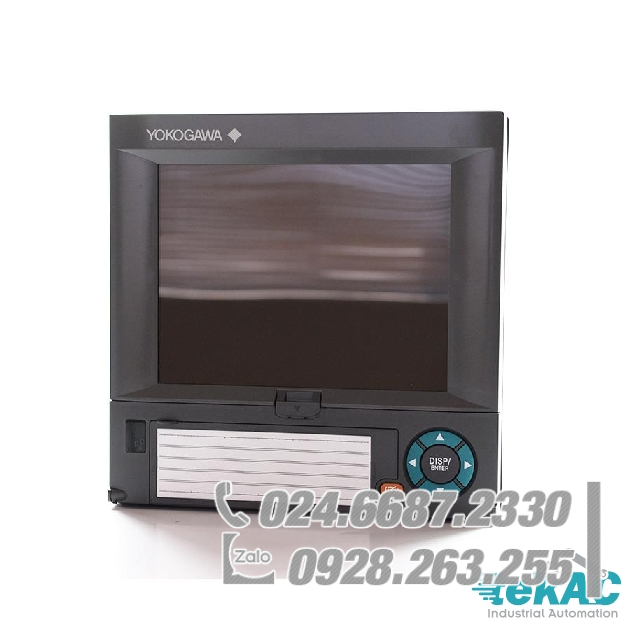

Yokogawa DX1004 Paperless Recorder

Construction
Mounting: Flush panel mounting (on a vertical plane)

Mounting may be inclined downward up to

30 degrees from a horizontal plane.

Allowable panel thickness:

2 to 26 mm

Material: Case: drawn steel

Bezel: polycarbonate

Display filter: polycarbonate

Case color:

Case: Grayish blue green

(Munsell 2.0B 5.0/1.7 or equivalent)

Bezel: Charcoal grey light

(Munsell 10B 3.6/0.3 or equivalent)
Front panel:

Water and dust-proof*

(based on IEC529-IP65 and NEMA

No.250 TYPE4 for indoor locations

(except external icing test))
*Except for side-by-side mounting

.
Dimensions:
144 (W) × 144 (H) × 224.1 (D) mm
144 (W) × 144 (H) × 228.5 (D)* mm
*In case of /H2 or /PM1 option is specified.
Weight: approx. 2.9 kg*
*without optional features

Background:
White or black selectable
Trend display:
Trend display type:
Vertical, horizontal, landscape,
horizontal or split selectable
Number of indication channels:
6 channels per display (maximum)
Number of display:
10 displays (10 groups)
Line width:
1, 2, and 3 pixels selectable

Display data file (approx.)
Trend update rate
(time/div) 15 s 30 s 1 min 2 min 5 min 10 min
Sampling period 0.5 s 1 s 2 s 4 s 10 s 20 s
Sampling time 46.3 h 3 days 7 days 15 days 38 days 77 days
Event data file (approx.)
Sampling period 25 ms 125 ms 0.5 s 1 s 2 s 5 s 10 s
Sampling time 3.5 h 17.4 h 2 days 5 days 11 days 28 days 57 day

DX1002 2ch, 125ms (Fast sampling mode: 25ms)
DX1004 4ch, 125ms (Fast sampling mode: 25ms)
DX1006 6ch, 1s (Fast sampling mode: 125ms)
DX1012 12ch, 1s (Fast sampling mode: 125ms)
