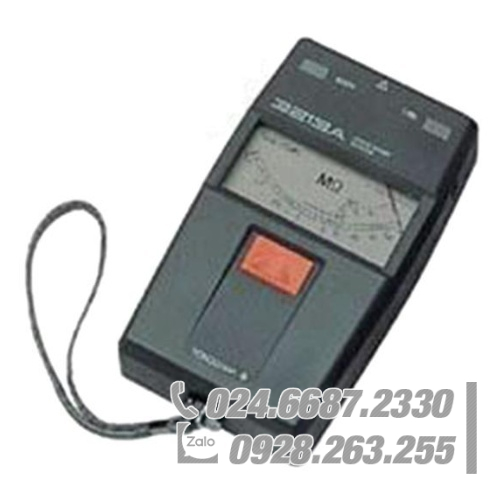

YOKOGAWA ANALOG INSULATION TESTERS 3213A SERIES Model 321343
- Analog models with single rating
- AC voltage measurement and check live lines such as motive power lines
- One-touch operation Press-and-lock switch for continuous measurement
- A wide choice of accessories to meet various testing requirements
- Vibration – and shock-resistant hand-held compact testers
- Approx weight including batteries, or Approx. weigh including hard case, handle, test leads and batteries
Specifications – Model 321343
| Rating | 500V/100MΩ |
|---|---|
| Effective Measuring Range | 0.1–100MΩ |
| Central Scale Value | 2MΩ |
| AC Voltage Measurement | 0 to 300 V |
| Lower Limit | 0.5MΩ |
| Rated Current | 1 mA |
| Scale Length | 88 mm |
| Approx. Width | 110 mm |
| Approx. Height | 180 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 700 g 1.2 kg |
| Batteries | Eight AA (R6P) batteries |
| Standard Accessories | Batteries Qty – 8 Handle (B9303XE) Qty – 1 Hard case (B9600HA) Qty – 1 (with leads-housing case) Test lead (B9205VA) Qty – 1 (consist of earth/line terminal) User’s manual Qty – 1 |
Standard Test Conditions – Model 312343
| Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
|---|---|
| Position of Use | Horizontal (5° max. of angle of inclination) |
| Battery Voltage | Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max. |
