Yokogawa 53007 Đồng hồ đo nhiệt độ

Yokogawa 53008 Đồng hồ đo nhiệt độ

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: 53008

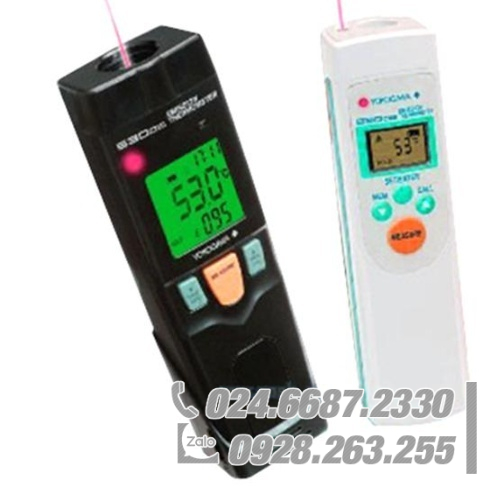

  • Product Name: Yokogawa 53008 Thermometer
  • Safety: good
  • Quality: International Standard for Yokogawa 53008 Thermometer
  • Accuracy: High Accuracy
  • Model: 53008
Mã: 1344-10130 Danh mục:



 530 series 53005/53006  specification



Model 53005 53006
Temperature measurement range -30~600℃
display resolution -30.0~199.9℃:±0.1℃;200~600℃:±1℃
measurement accuracy (ε≈0.95) -30.0~0.0℃::3℃;0.1~200℃::2℃:200~600℃::1%
Reproducibility ±1℃
Measurement field of view 30mm/1000mm(DS =33:1)
Detecting element / wavelength Thermopile /8~14μm
Response time 0.5s(90% response)
Sighting No coaxial laser sighting (Class2), With PSC logo
Data Hold Time 15s
On-line / low limit alarm Alarm LED and beeps
Communication output no USB
Radiation
(ε) modification		 0.7/0.85/0.95 switching 0.3~1.2:0.01 Stepping
Number of data records 1 35(MAX 150)
power supply Two LR6 (AA alkaline) batteries
Battery Life About 15 hours (maximum load)
Working temperature and humidity range 0~50℃/35~85RH( No condensation )
Storage temperature and humidity range -10~60℃/35~85%RH
external dimensions about 182×56×38mm
weight about 250g( Including batteries )
other Continuous measurement



530 series 53007/53008  specification



Model 53007 53008
Temperature measurement range -30.0~200.0℃

(display -40~220.0℃

 0~500℃

(display:-10~650℃)
display resolution ±0.1℃ ±1℃
measurement accuracy (ε≈0.95) -30.0~0.0℃:±3.0℃;0.1~100℃:±1℃:100.1~200℃:±2.0℃ 0~200℃::2.0℃,201~500℃:±1%
Reproducibility ±1.0℃ ±1℃
Measurement field of view 66.7mm/1000mm(DS=15:1)
Detecting element / wavelength Thermopile /8~14μm
Response time 0.7s(90% response)
Sighting No coaxial laser sighting (Class2), With PSC logo
Data Hold Time 15s
Radiation  (ε)modification 0.95/0.85 Switching 0.95/0.70 switching
Continuous measurement function (ON/OFF switching)
On-line / low limit alarm Alarm LED and beeps (ON/OFF switching)
Number of data records 99
power supply Section 1 9V alkaline battery
Battery Life About 12 hours (maximum load)
Protective Structure / Materials IP67 (JIS protection grade 7), ABS (anti-bacterial)
external dimensions about 160×44×42mm
Working temperature and humidity range 0~50℃/35~85%RH( No condensation )
Storage temperature and humidity range -10~60℃/35~85%RH
weight about 200g(including batter)
