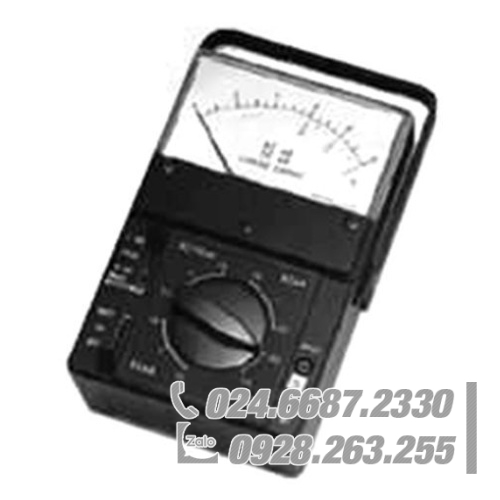

3201 circuit tester technical parameters:
DC V: 0.3 / 1.2 / 3/12/30/120/300 / 1200V
DC A: 0.012 / 0.12 / 1.2 / 12/120 / 1200mA
ACV: 3/12/30/120/300 / 1200V
Resistance: 2/200 / 20,000 KΩ
- Type 3201 Circuit Tester has measuring function of AC/DC voltage, DC current, DC resistance and decibel. It is suitable for maintenance such as telephones, wireless communication equipment, radios, TV and other general purpose measurements.
- High input resistance and impedance: 100 KΩ/V for DC, 10 KΩ/V for AC
- Rugged construction
Basic Accuracy & Ranges
DCV : Range, 0.3/1.2/3/12/30/120/300/1200V : Accuracy, ± 2.0% of full scale (e×cept 1200V range ± 3.0%) : Remarks, Input resistance : 100 KΩ/V DCA : Range, 0.012/0.12/1.2/12/120/1200mA : Accuracy, ± 3.0% of full scale (e×cept 1200V range ± 4.0%) : Remarks, Terminal voltage drop: less than 250 mV ACV : Range, 3/12/30/120/300/1200V : Accuracy, ± 3.0% : Remarks, Input impedance: 10 KΩ/V Resistance : Range, 2/200/ 20,000 KΩ : Accuracy, ± 3.0% of full scale : Remarks, enter scale mark: 10 Ω for ma×. Full scale of 2 KΩ
(min. Div. 0.2 Ω)Decibel : Range, -20 to 11/23/31/43 dB : Accuracy, ± 3.0% of full scale (dB) : Remarks, Input impedance St’d accessories : 1.5V battery: 1, Test leads set: 1, Alligator clip: 1, Portable case:1
