Bình tích áp dòng TA KGN TA150

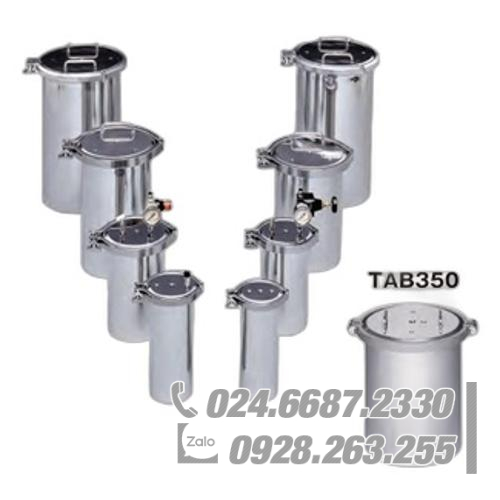

Pressure tanks TA series is designed such that material which has been filled in an inner container can be put into the tank and used. Since the material is not filled directly into the pressure tank, cleaning of the tank body is not required. Besides our stainless steel inner container, you can use other containers available in the market.

TAB350 is a large pressure tank type which 18 litre drum or pail available in the market can be placed directly into the tank.

We have a wide range of options from which you can select according to your requirements.

Model	TA90N	TA100N	TA125N	TA150	TA200	TA201	TA253	TA254	TAB350
Tank Capacity	1.8L	2.5L	3.4L	4.9L	10.1L	11.8L	23.7L	23.7L	39.3L
Weight	2.5kg	3.1kg	4.5kg	6.7kg	114.5	15.8kg	24.2kg	25.3kg	39.6kg
Material	SUS304
OperatingPressure	Maximum 0.49MPa
Lid Attach / Detach Mechanism	Ferrule clamp type
Fluid Outlet	Top port (Upper) Rc1/4 (standard)
Air Pressure Port	Top port (Upper) Rc1/4(standard)
Sealing Method	O-ring seal (NBR standard)
Finish	Buffing of the inside and outside surface

Inner Container for TA Pressure Tanks
Model	For TA90N	For TA100N	For TA125N	For TA150	For TA200	For TA201	For TA253/TA254
Capacity	1.3L	1.8L	2.6L	4.L	8.4L	10.0L	20.0L
A(mm)	56	69	93	118	168	169	219
B(mm)	17	17	17	17	17	17	17
Height	240	255	240	240	290	340	440

*The shape of the base and the size and position of the tap on the lid will vary depending on the model.

*Other than the standard NBR, the materials in which the O-ring is available are FKM, Silicone, EPDM, FFKM, FEP/SI double O-ring etc. Please select the one which suits the material you are using.
